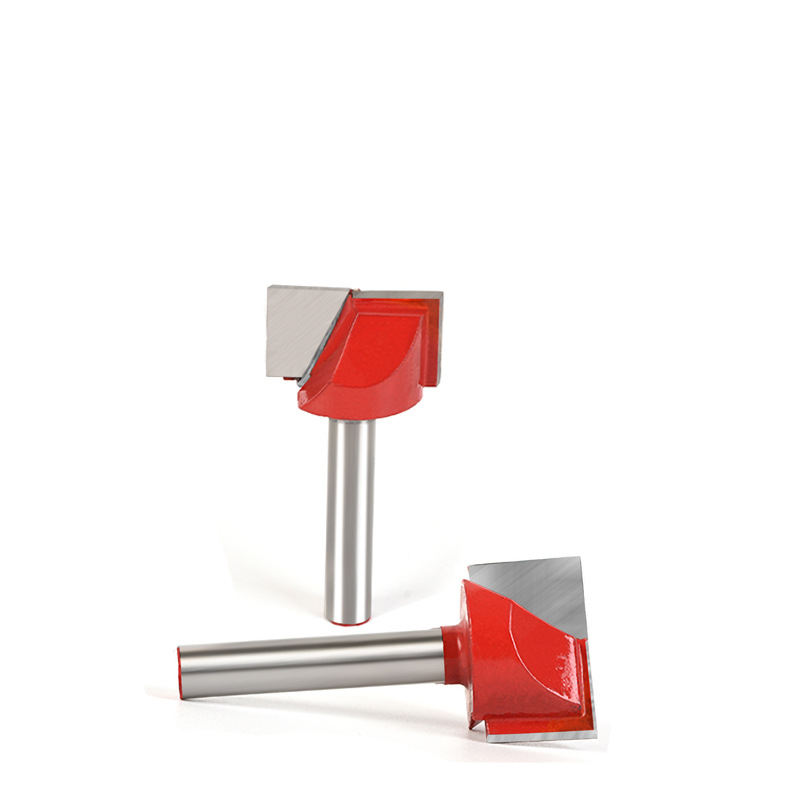

Cleaning Bottom Router Bit Router For Wood

Short Description:

Customized support:OEM, ODM

Place of Origin:Hebei, China

Brand Name:XINFA

Material:Tungsten Cobalt Alloy, Tungsten steel

Coating:NONE

Application:Wood Carving

Suitable for:Ply Wood

MOQ:5

Flute:2

Package:Plasitc Box

Shank diameter:6mm

Flute diameter:12mm


Product Detail

FAQ

Product Tags

Product Description

Material Tungsten steel Application Wood Carving
Warranty 1 year Suitable for Ply Wood
Customized support OEM, ODM Package Plasitc Box
Place of Origin China Model Number XINFA-T142
Flute 2 Flute diameter 12mm
Brand Name XINFA Shank diameter 6mm

Feature

1.Tungsten steel cutter body is sharp and wear-resistant for a long time.
2.High frequency welding is firm and durable
The high-frequency welding process is adopted between the cutter head and the handle, and the interface is full and firm.
3.Applicable materials: plywood, hardwood, particleboard, MDF.
4.Use effect: plywood engraving, hardwood engraving, particle board engraving, MDF engraving.
5.Tungsten steel blade steel handle
The blade is made of high-hardness tungsten steel material, and the whole is hard, firm and durable, and has a long service life.


How to use the woodworking engraving machine tool:
1. Multi-stripe milling cutters are recommended for rough machining of particleboard, etc.
2. A diamond engraving knife is recommended for acrylic mirror engraving.
3. The use effect of the lower cutter, the upper surface of the processed product has no burrs, and there is no rocker during processing.
4. For multi-layer board and splint processing, it is recommended to use double-edged straight groove milling cutter.
5. For high density board and solid wood, it is recommended to use a ribbed cutter.
6. For top and bottom burr-free cutting, it is recommended to use a single-edge, double-edge top and bottom milling cutter.
7. For cork, MDF, virgin wood, PVC, acrylic large-scale deep relief processing, it is recommended to use a single-edged helical ball end milling cutter.
8. For precision small relief processing, it is recommended to use a round-bottomed cutter.
9. For aluminum plate cutting, it is recommended to use a single-edged special aluminum milling cutter. No sticking to the knife during processing, high speed and high efficiency.
10. For MDF cutting, it is recommended to use a double-edged helical milling cutter with large chip removal. It has two high-capacity chip removal grooves and a double-edged design, which not only has a good chip removal function, but also achieves a good tool balance. When processing medium and high density boards, it has the characteristics of no blackening, no cap smoke, and long service life.
11. For acrylic cutting, it is recommended to use a single-edged spiral milling cutter, which is characterized by smokeless and odorless processing, fast speed, high efficiency, no sticky chips, and truly environmentally friendly. Its special manufacturing process ensures that the acrylic will not explode. , Very fine knife pattern (even without knife pattern), the surface is smooth and smooth. The machined surface needs to achieve a frosted effect, and it is recommended to use a double-edged three-edged spiral milling cutter.


  • Previous:
  • Next:

  • Q1:Can I have a sample for testing?
    A: Yes, we can support sample. The sample will be charged reasonably according to the negotiation between us.

    Q2:Can I add my logo on the boxes/cartons?
    A:Yes,OEM and ODM are available from us.

    Q3: What are the benefits of being a distributor ?
    A: Special discount Marketing protection.

    Q4:How can you control the quality of products?
    A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support. 100% self-inspection before packing.

    Q5:Can I have a visit to your factory before the order?
    A: Sure,welcome your visit of factory.
