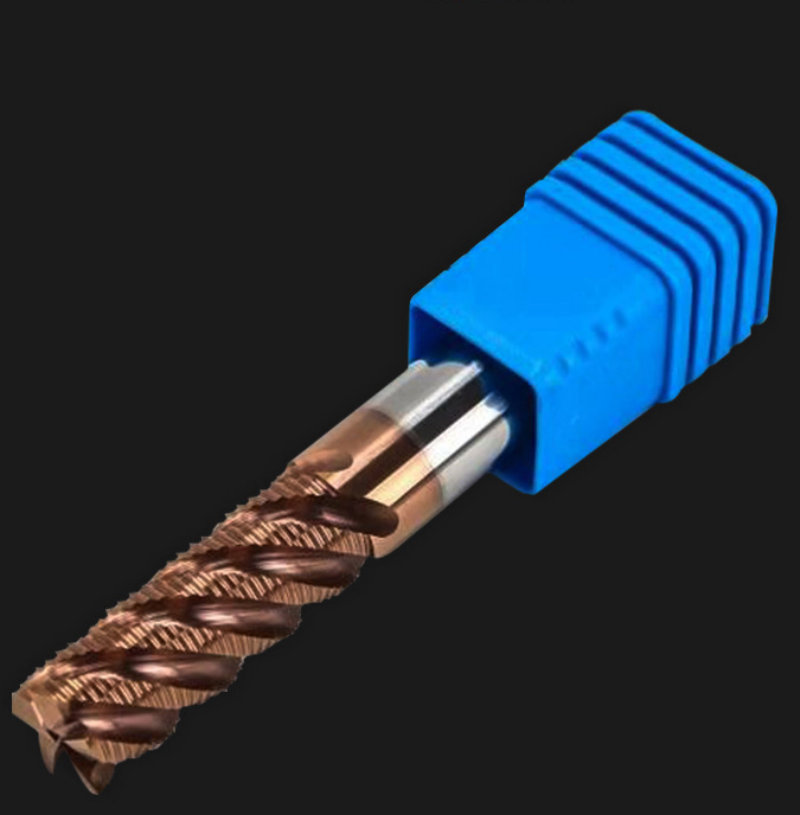

HRC55 4 Flutes Roughing Cut End Mill
Super raw material
| HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 (German) | H10F (Sweden) |
| Grain Size:0.7um Co:10 % Flexural strength:3320N/mm2 |
Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2 |
Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2 |
Grain Size:0.5um Co:10 % Flexural strength:4300N/mm2 |
Reasonable price
Pleasure to offer you more discount according to your quantity.
More quantity, more discount.
UseSuper coating
| Item | AlTiN | TiAIN | TiSiN | NACO |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
| Specification | Flute Dia(φ) | Flute Length (C) | Shank Dia(D) | Overall Length(L) |
| Φ1x3Cx4x50L | 1.0 | 3 | 4 | 50 |
| Φ2x6Cx4x50L | 2.0 | 6 | 4 | 50 |
| Φ3x8Cx4x50L | 3.0 | 8 | 4 | 50 |
| Φ4x10Cx4x50L | 4.0 | 10 | 4 | 50 |
| Φ5x13Cx6x50L | 5.0 | 13 | 6 | 50 |
| Φ6x15Cx6x50L | 6.0 | 15 | 6 | 50 |
| Φ8x20Cx8x60L | 8.0 | 20 | 8 | 60 |
| Φ6x20Cx6x75L | 6.0 | 20 | 6 | 75 |
| Φ8x25Cx8x75L | 8.0 | 25 | 8 | 75 |
| Φ10x25Cx10x75L | 10.0 | 25 | 10 | 75 |
| Φ12x30Cx12x75L | 12.0 | 30 | 12 | 75 |
| Φ10x40Cx10x100L | 10.0 | 40 | 10 | 100 |
| Φ12x45Cx12x100L | 12.0 | 45 | 12 | 100 |
| Φ14x40Cx14x100L | 14.0 | 40 | 14 | 100 |
| Φ16x40Cx16x100L | 16.0 | 40 | 16 | 100 |
| Φ18x40Cx18x100L | 18.0 | 40 | 18 | 100 |
| Φ20x45Cx20x100L | 20.0 | 45 | 20 | 100 |
Q1:Can I have a sample for testing?
A: Yes, we can support sample. The sample will be charged reasonably according to the negotiation between us.
Q2:Can I add my logo on the boxes/cartons?
A:Yes,OEM and ODM are available from us.
Q3: What are the benefits of being a distributor ?
A: Special discount Marketing protection.
Q4:How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support. 100% self-inspection before packing.
Q5:Can I have a visit to your factory before the order?
A: Sure,welcome your visit of factory.
