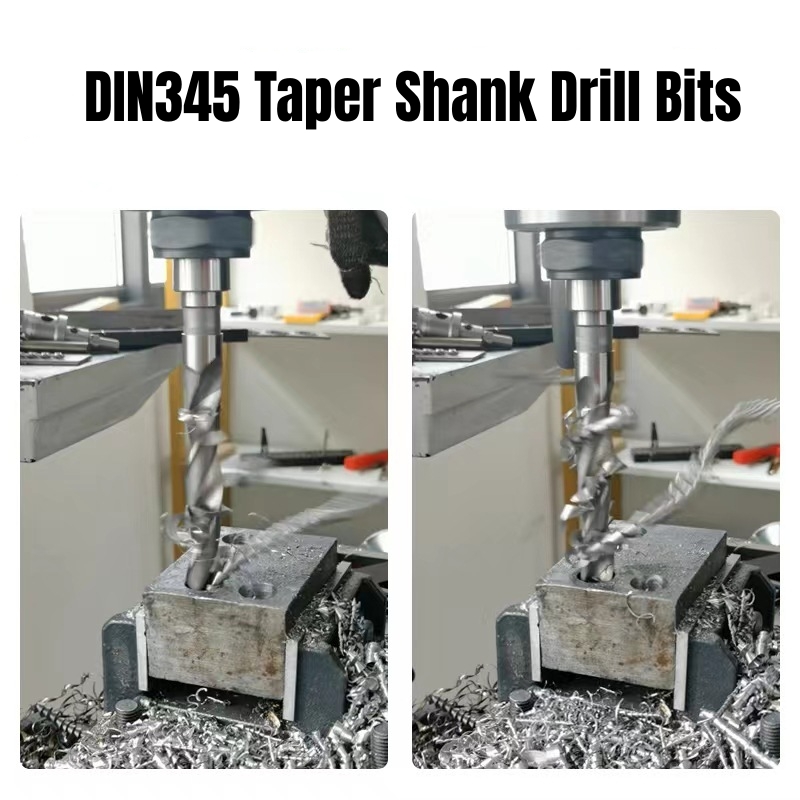

DIN345 HSS6542 Morse Taper Shank Drill Bits For Metal

Short Description:

Sharp drill bit design, made of HSS high-speed steel, easy to drill to the end, saving effort. Special groove geometry, excellent chip removal, prevents blockage and improves drilling quality


Product Detail

FAQ

Product Tags

Product Description

Sharp drill bit design, made of HSS high-speed steel, easy to drill to the end, saving effort. Special groove geometry, excellent chip removal, prevents blockage and improves drilling quality

Recommendation For Use In Workshops

Brand Xinfa Coating /
Product Name Taper Shank Drill Package Plastic Box
Material HSS 6542 Use Metal Drill

Specification

Dia(mm) Overall Length(mm) Flute Length(mm) MT Dia(mm) Overall Length(mm) Flute Length(mm) MT
6 138 57 1 34.1-34.9 339 190 4
6.,6.5 144 63 1 35 339 190 4
6.8,7.0,7.5 150 69 1 35.1-35.5 339 190 4
7.8,8.0 156 75 1 35.6-36 344 195 4
8.5 156 75 1 36.1-36.5 344 195 4
8.8 162 81 1 36.6-36.9 344 195 4
9 162 81 1 37-37.5 344 195 4
9.5 162 81 1 37.6-38.9 349 200 4
9.8 168 87 1 39-40 349 200 4
10 168 87 1 40.51-41 354 205 4
10.5 168 87 1 41.1-41.9 354 205 4
10.8-11.8 175 94 1 42-42.5 354 205 4
11.9-12.9 182 101 1 42.6-43.5 359 210 4
13.0-13.2 182 101 1 43.6-44.9 359 210 4
13.3-13.9 189 108 1 45 359 210 4
14 189 108 1 45.1-46.5 364 215 4
14.1-14.9 212 114 2 46.6-47.5 364 215 4
15 212 114 2 47.6-49.5 369 220 4
15.1-15.5 218 120 2 49.6-50 369 220 4
15.6-16 218 120 2 50.1-50.5 374 225 4
16.1-16.9 223 125 2 51-53 412 225 5
17 223 125 2 54-55 417 230 5
17.1-17.9 228 130 2 56-57 422 235 5
18 228 130 2 58-60 422 235 5
18.1-18.9 233 135 2 61-63 427 240 5
19 233 135 2 64-65 432 245 5
19.1-19.9 238 140 2 66-67 432 245 5
20 238 140 2 68-70 437 250 5
20.1-20.9 243 145 2 72-75 442 255 5
21 243 145 2 76 447 260 6
21.1-21.9 248 150 2 77 514 260 6
22-22.4 248 150 2 78 514 260 6
22.5-22.9 253 155 2 79 514 260 6
23 253 155 2 80 514 260 6
23.1-23.6 276 155 3 81 519 265 6
23.7-24.9 281 160 3 82 519 265 6
25 281 160 3 83 519 265 6
25.1-25.9 286 165 3 84 519 265 6
26-26.5 286 165 3 85 519 265 6
26.6-26.9 291 170 3 86 524 270 6
27-27.9 291 170 3 87 524 270 6
28 291 170 3 88 524 270 6
28.1-28.9 296 175 3 89 524 270 6
29-29.9 296 175 3 90 524 270 6
30 296 175 3 91 529 275 6
30.1-30.9 301 180 3 92 529 275 6
31-31.2 301 180 3 93 529 275 6
31.3-31.5 301 180 3 94 529 275 6
31.6-31.7 306 185 3 95 529 275 6
31.8 334 185 4 96 534 280 6
31.9-32 334 185 4 97 534 280 6
32.1-32.5 334 185 4 98 534 280 6
32.6-33 334 185 4 99 534 280 6
33.1-33.5 334 185 4 100 534 280 6
33.6-34 339 190 4

  • Previous:
  • Next:

  • Q1:Can I have a sample for testing?
    A: Yes, we can support sample. The sample will be charged reasonably according to the negotiation between us.

    Q2:Can I add my logo on the boxes/cartons?
    A:Yes,OEM and ODM are available from us.

    Q3: What are the benefits of being a distributor ?
    A: Special discount Marketing protection.

    Q4:How can you control the quality of products?
    A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting or installation process, as well as aftermarket support. 100% self-inspection before packing.

    Q5:Can I have a visit to your factory before the order?
    A: Sure,welcome your visit of factory.
